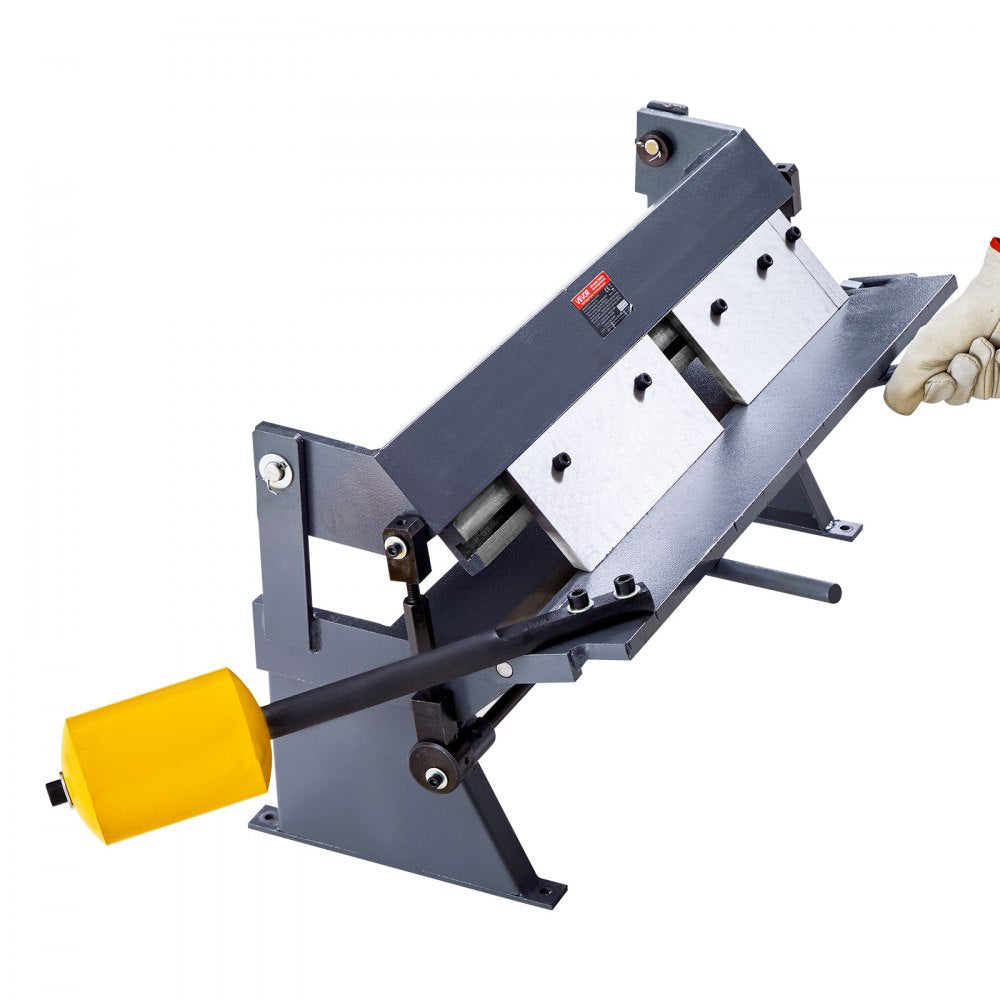

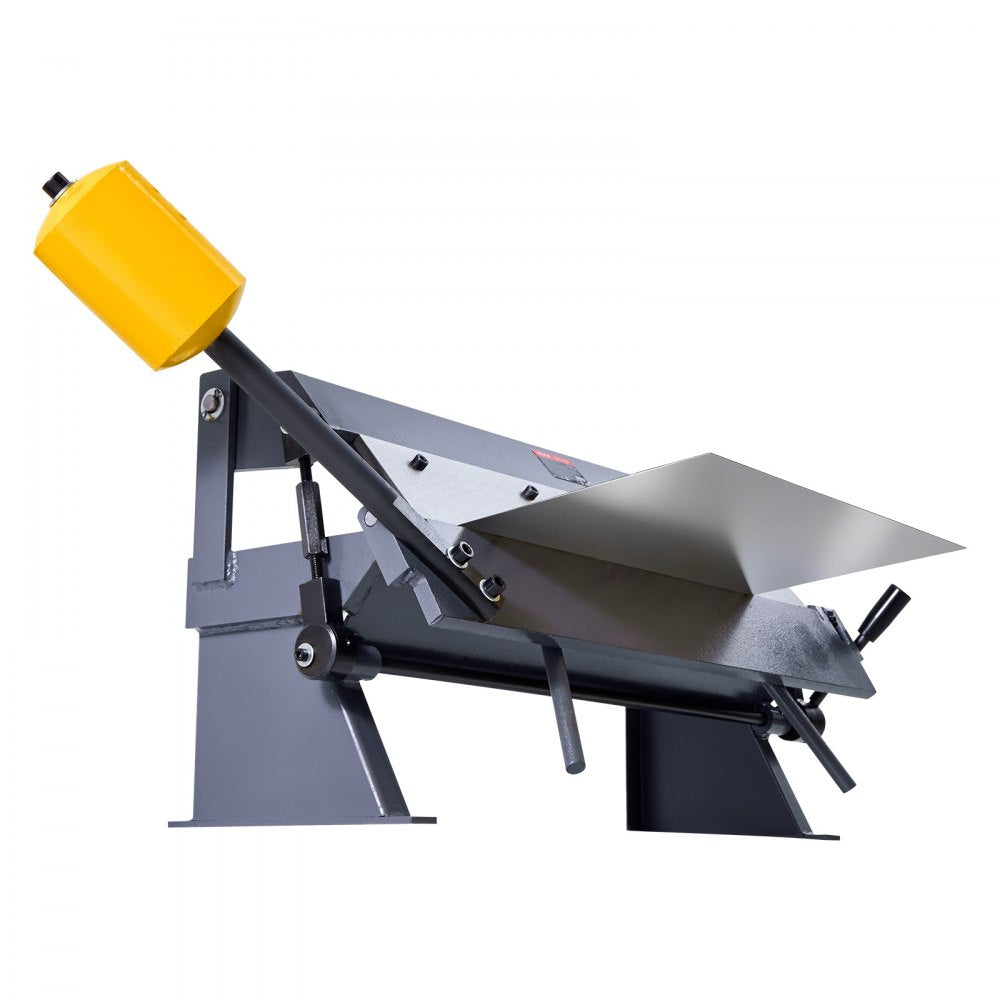

24-Inch Bending Capacity: This sheet metal brake can easily bend metal sheets up to 24 in wide with bending angles ranging from 0° to 135°, ideal for small-scale DIY projects and workshop tasks.
Versatile Material Compatibility: Our box and pan brake supports a variety of materials, including mild steel, stainless steel, copper, and aluminum. It can efficiently bend 16 gauge (1.5 mm) mild steel sheets.

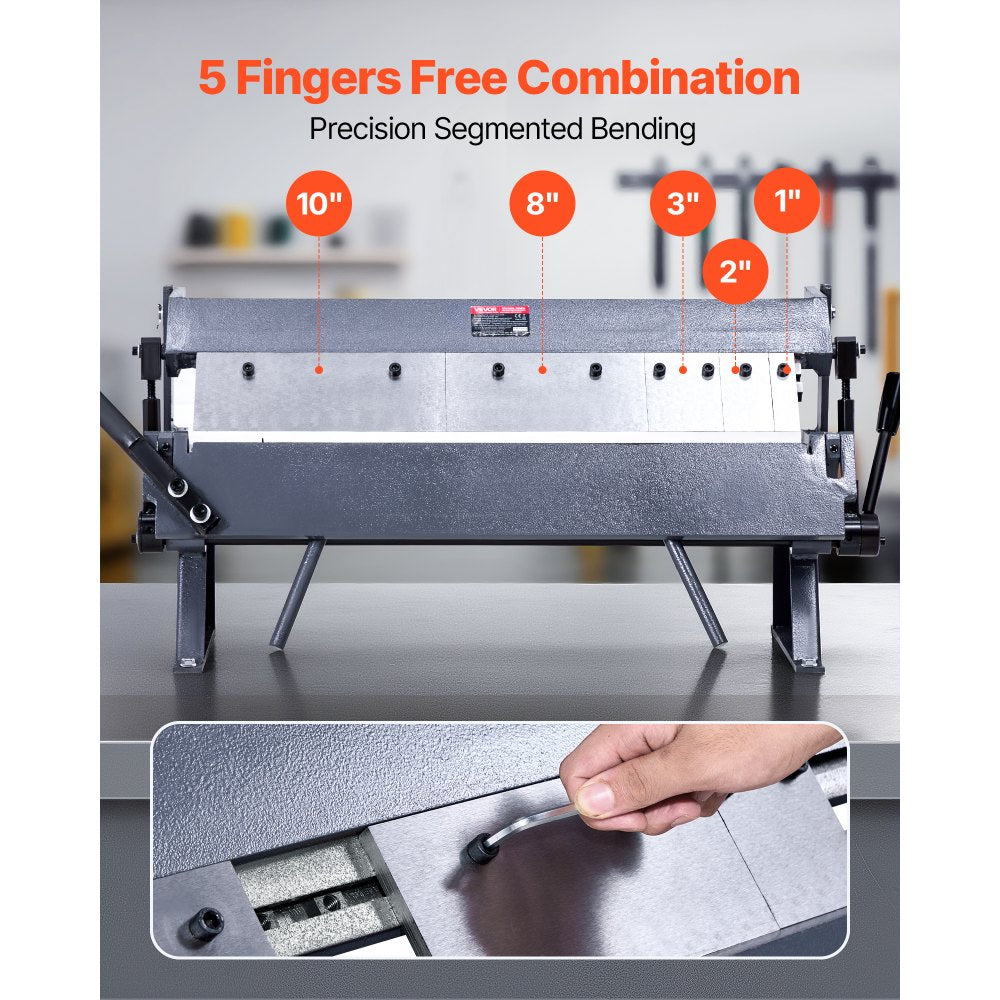

Modular Bending Dies: Equipped with five different segment fingers (1", 2", 3", 8", 10"), the sheet metal bender allows for customizable bending to handle complex projects like electrical enclosures, instrument housings, and ventilation ducts.

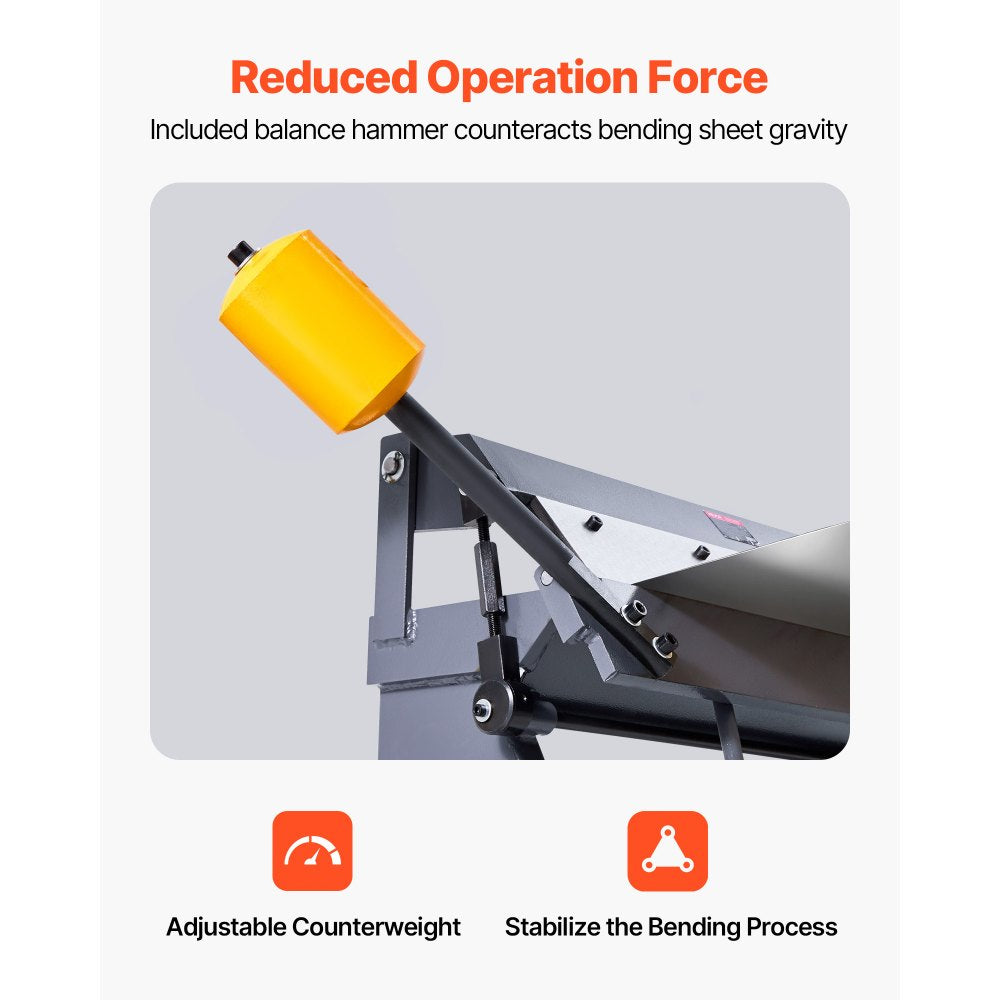

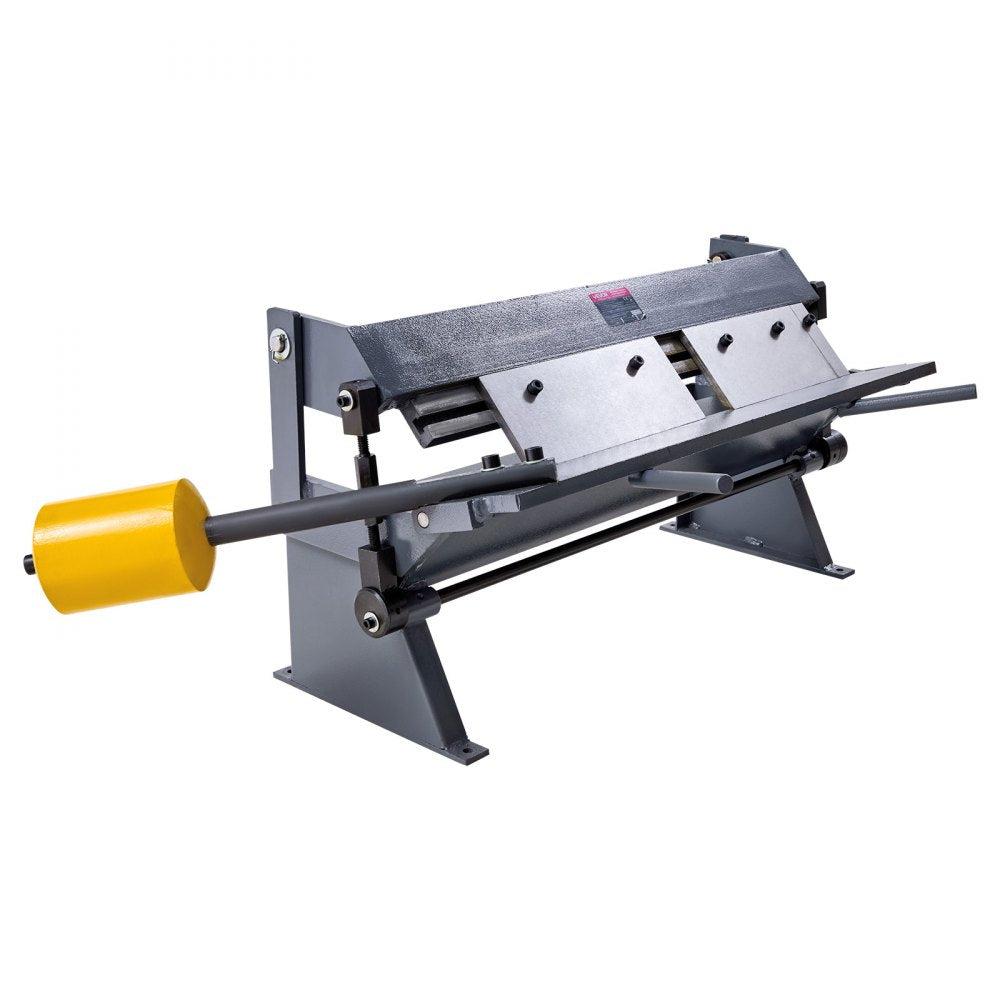

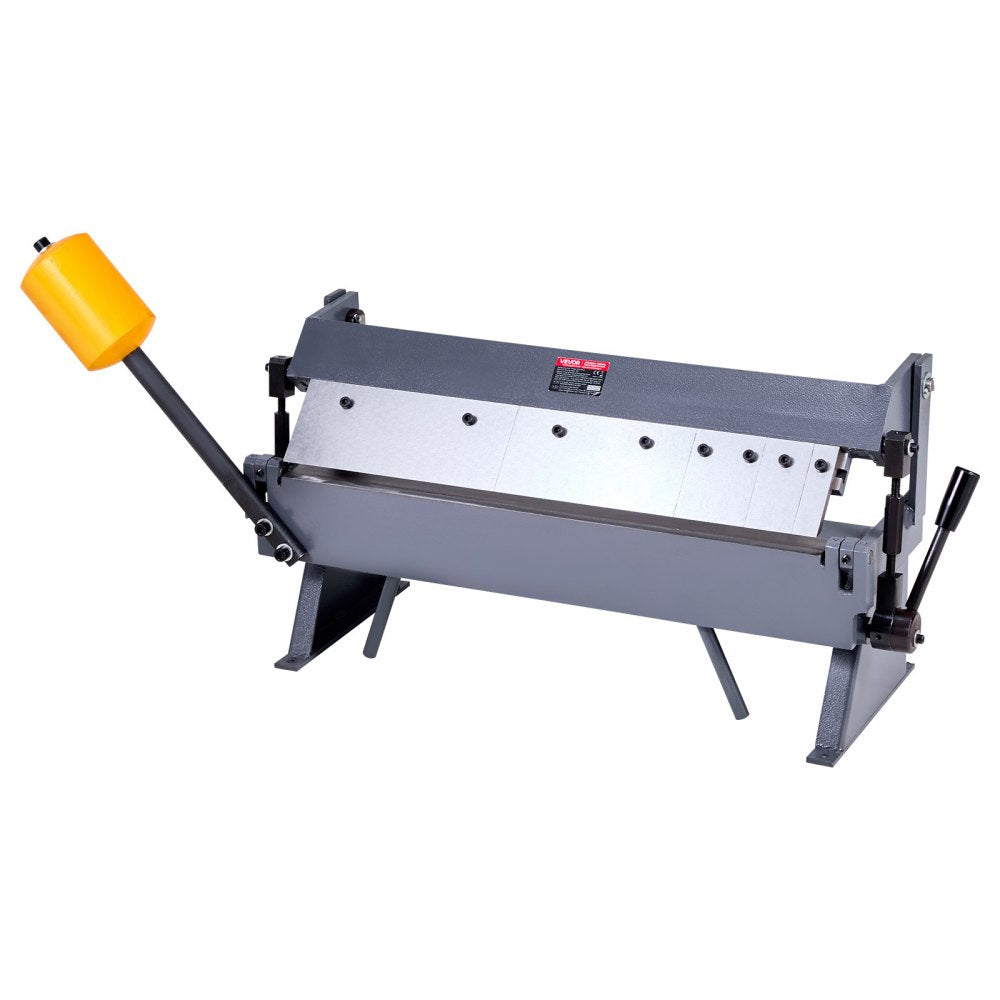

Effortless and Stable Operation: The metal bending machine features a single balancing hammer for secure clamping, reducing the force needed for bending and improving work efficiency. The pre-drilled holes at the base allow for easy mounting on a workbench or floor.

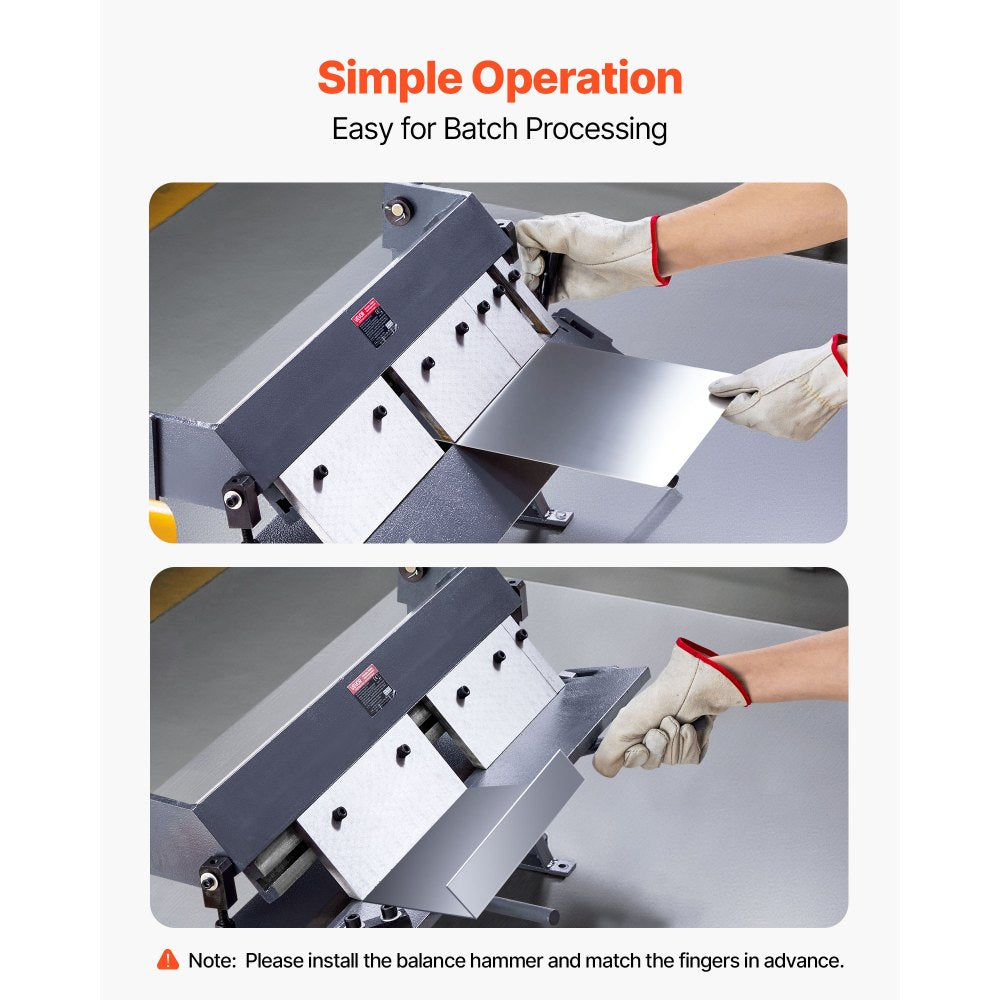

Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).

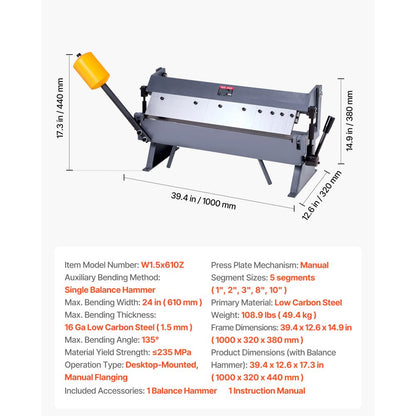

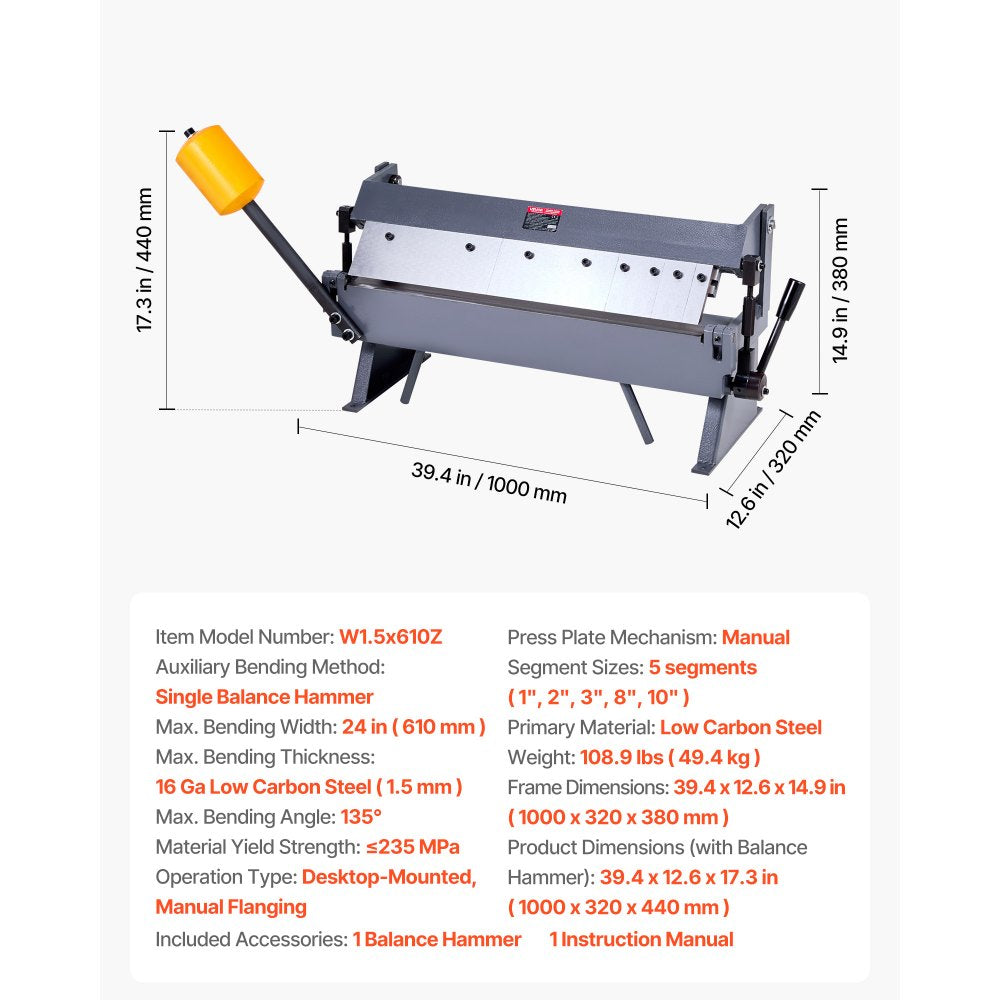

610 mm Box and Pan Brake 0-135° 16 Ga Sheet Metal Bending Brake 5 Fingers Pro Tool for Batch Bending Compatible with Multiple Materials Segmented Fingers Bending Stable Bending Performance Security First Built to Last Primary Material: Low Carbon Steel,Press Plate Mechanism: Manual,Operation Type: Desktop-Mounted, Manual Flanging,Max. Bending Thickness: 16 Ga Low Carbon Steel (1.5 mm),Max. Bending Angle: 135°,Segment Sizes: 5 segments (1", 2", 3", 8", 10"),Weight: 108.9 lbs (49.4 kg),Product Dimensions (with Balance Hammer): 39.4 x 12.6 x 17.3 in (1000 x 320 x 440 mm),Item Model Number: W1.5x610Z,Max. Bending Width: 24 in (610 mm),Frame Dimensions: 39.4 x 12.6 x 14.9 in (1000 x 320 x 380 mm),Material Yield Strength: ≤235 MPa,Auxiliary Bending Method: Single Balance Hammer
