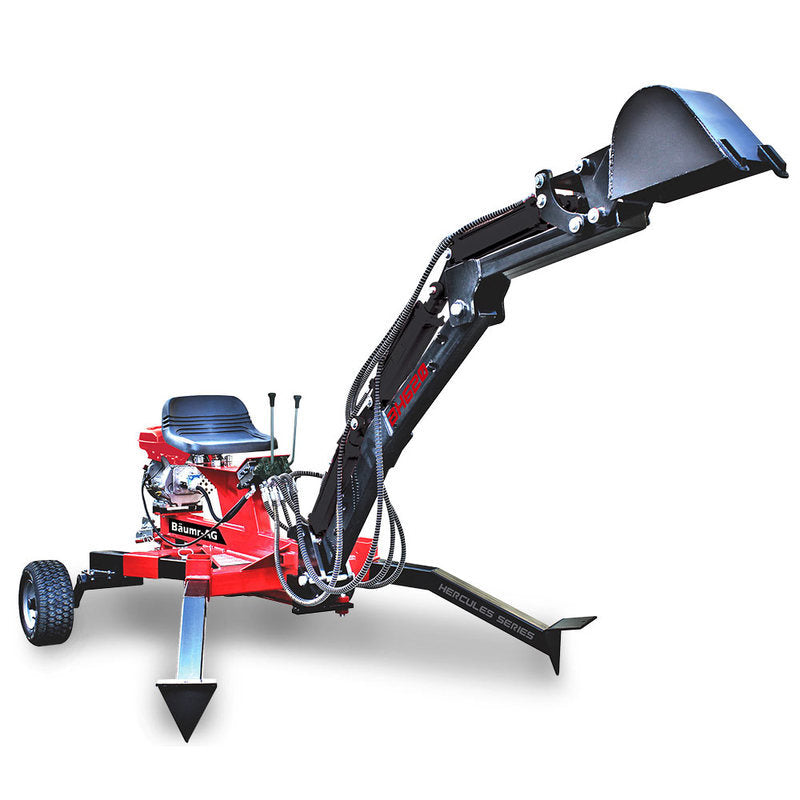

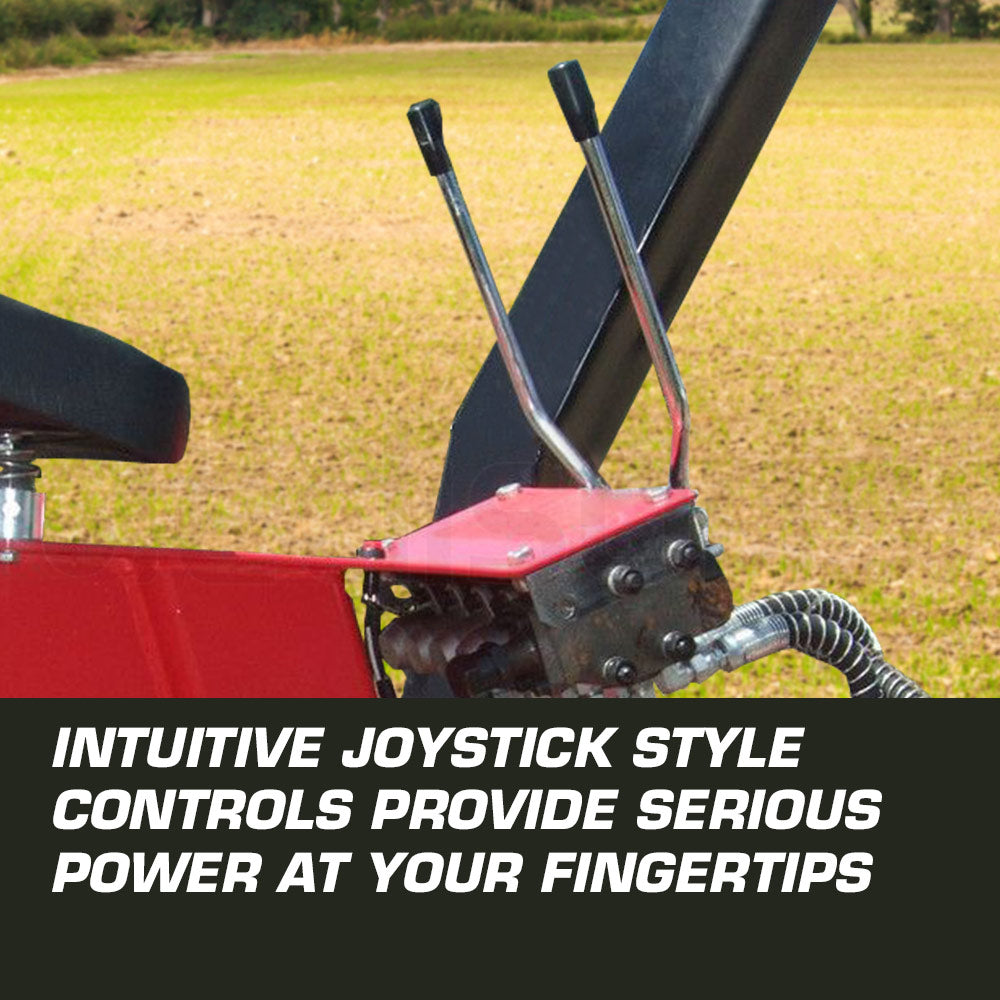

The Baumr-AG BH620 petrol-powered backhoe is ready to sink it’s teeth into virtually any task you give it. You will have precision and power at your fingertips with the easy-to-use joystick style hydraulic controls. The overarching curved boom design means you can dig deep without worry of damaging your machine and prevents soil from falling back into the hole. Landscaping, excavating and trenching soon become easy tasks with the digging power, and with a depth of 7ft with an 8ft reach.

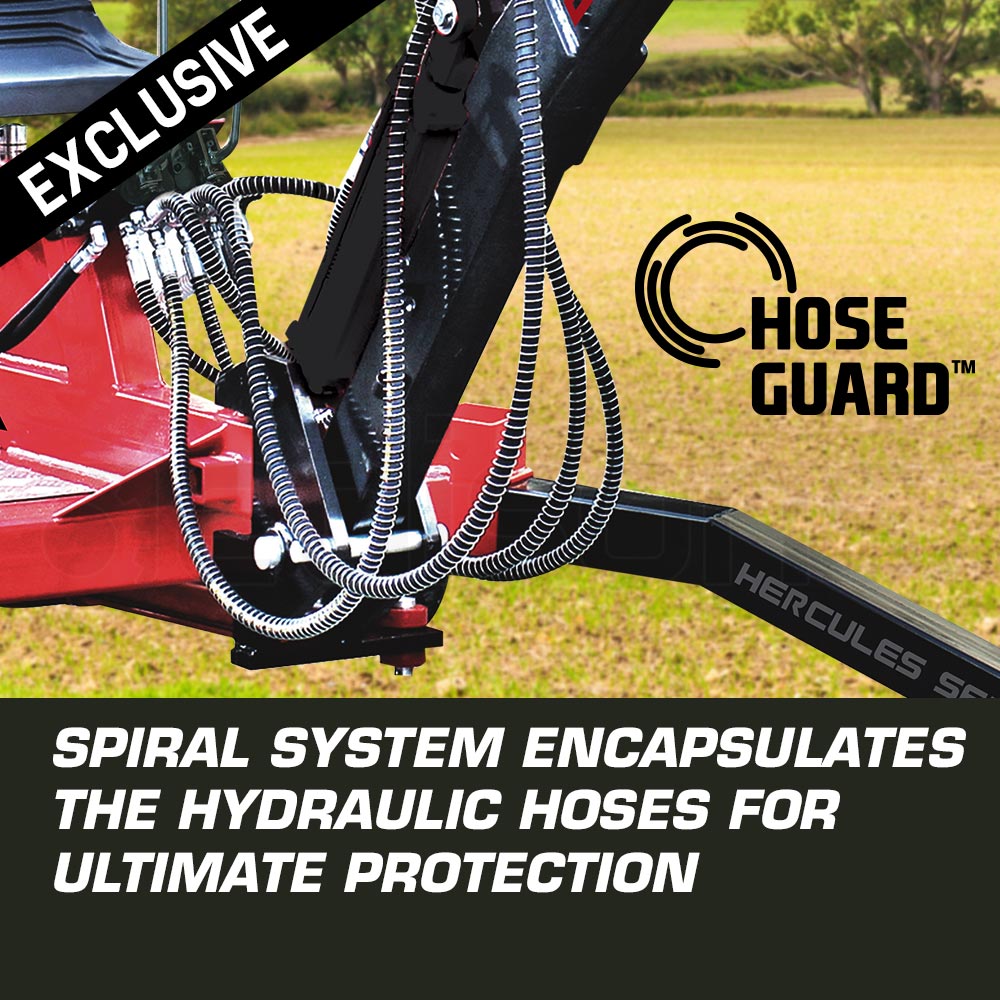

The BH620 features a 9HP four-stroke engine and three powerful hydraulic cylinders which control the boom to provide strong consistent movement through the 120° bucket swing. Our hydraulic hoses are encapsulated by HoseGuard™ . This exclusive spiral system ensures the hoses keep their shape to prevent interfering with controls or operation, and to offer an additional layer of protection.

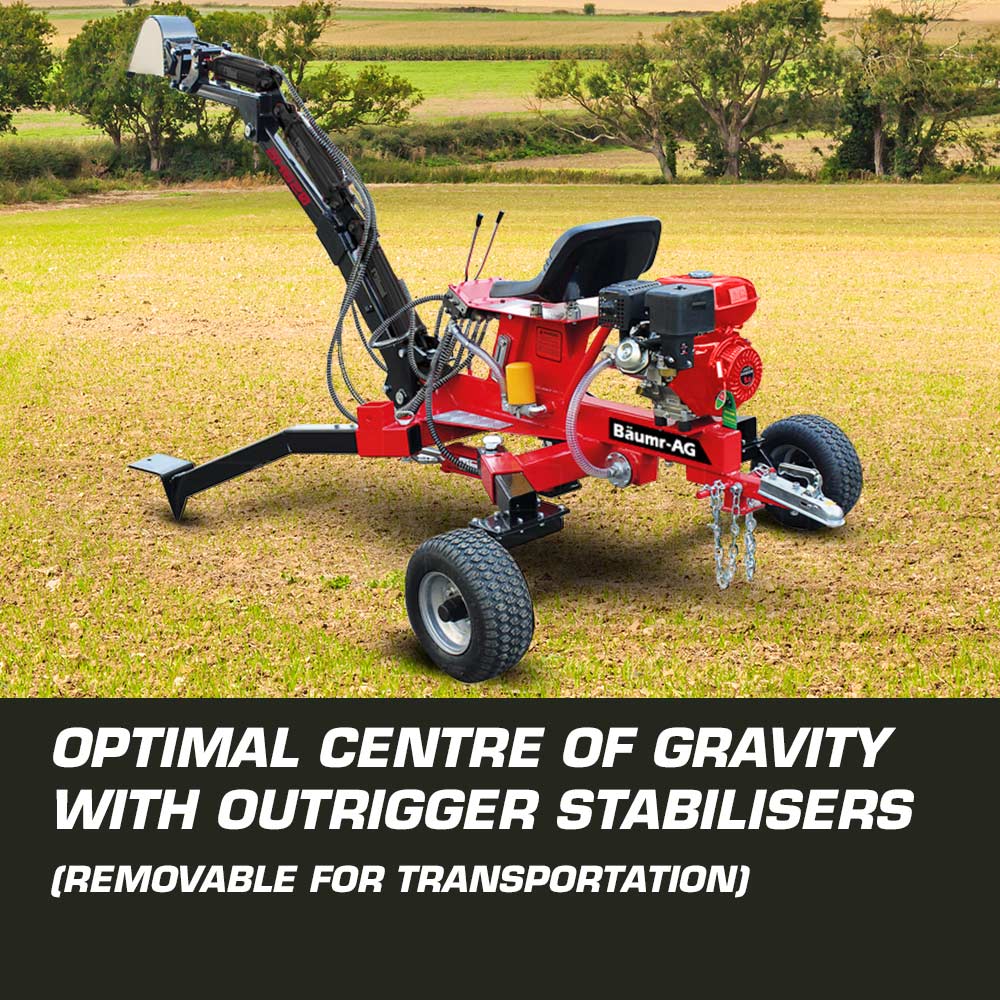

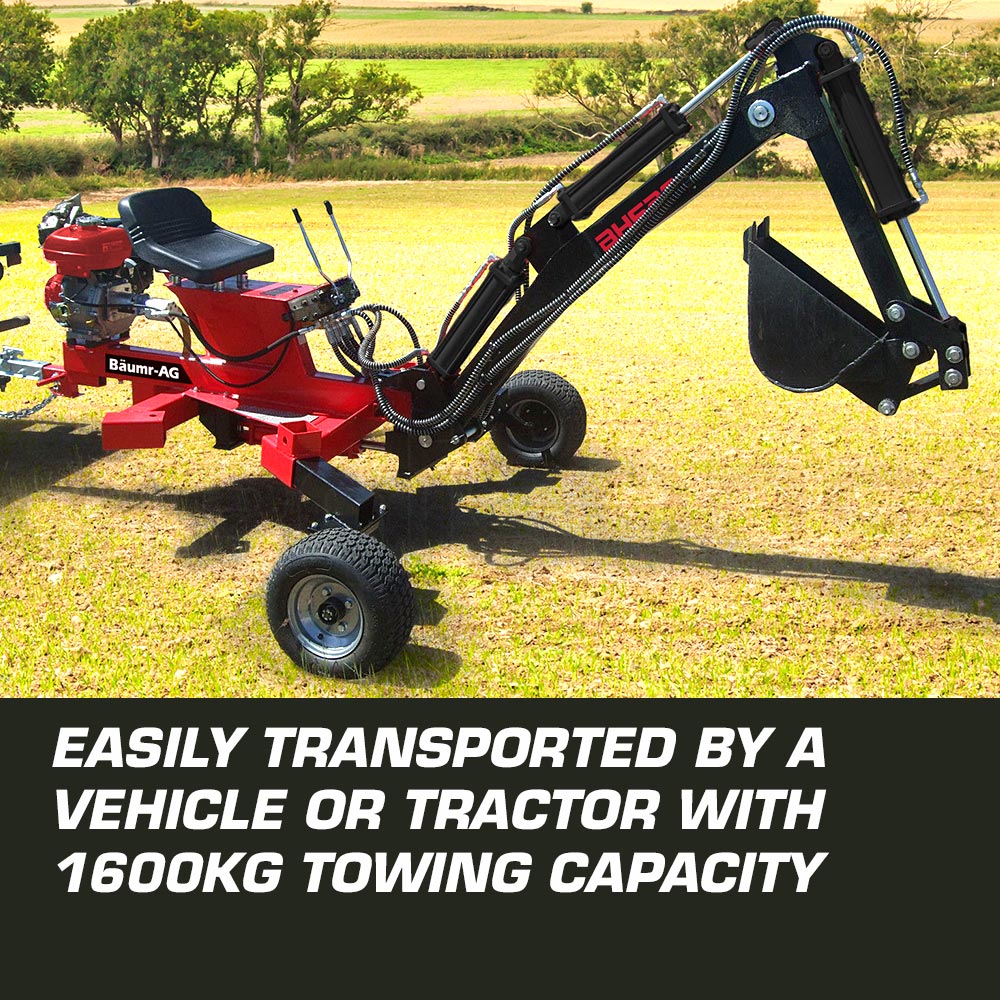

Outrigger stabilisers legs enable you to widen the centre of gravity which allows for extra stability, and are easily removed and repositioned vertically for transporting. It is easy to tow around using your vehicle, quad bike or tractor with a 1600kg capacity. The 16” pneumatic tyres will glide over rough terrain to get to your work area.
Order your Baumr-Ag Petrol Backhoe today!
9HP petrol engine

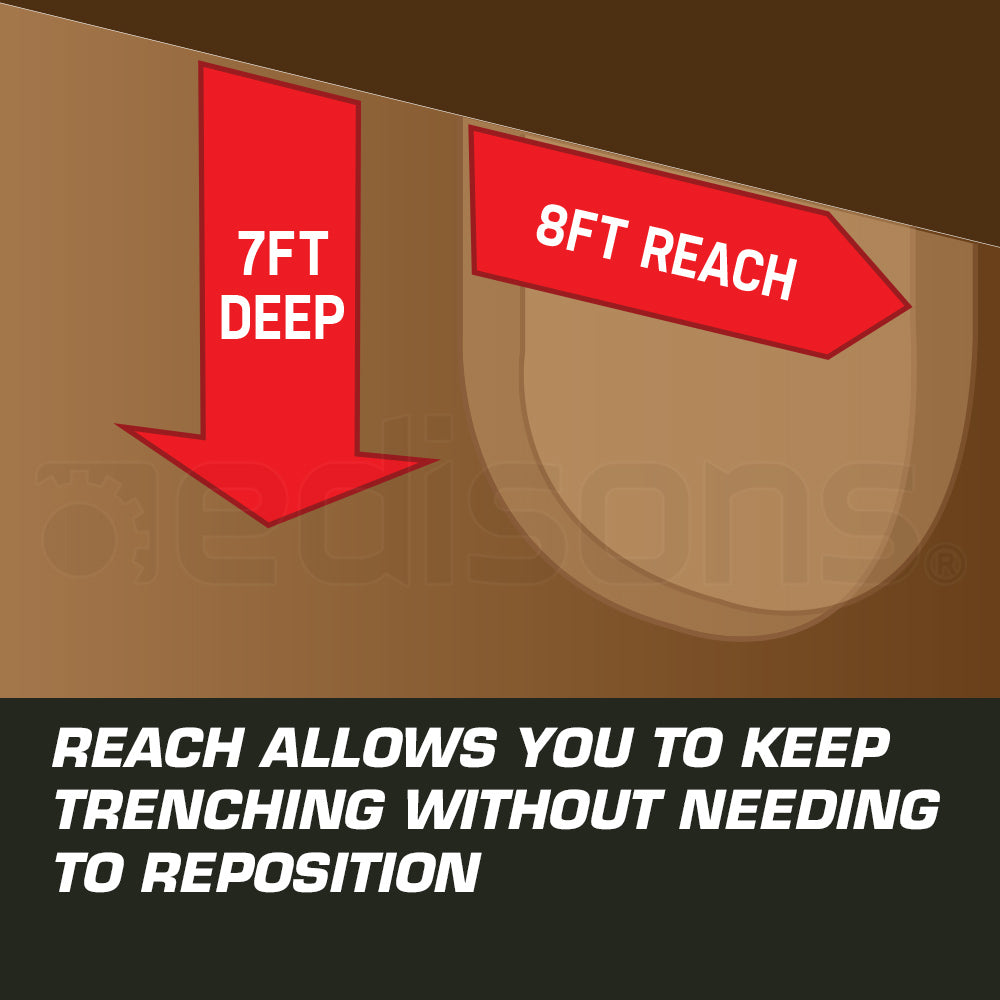

Digs 7ft deep with 8ft reach
Intuitive controls

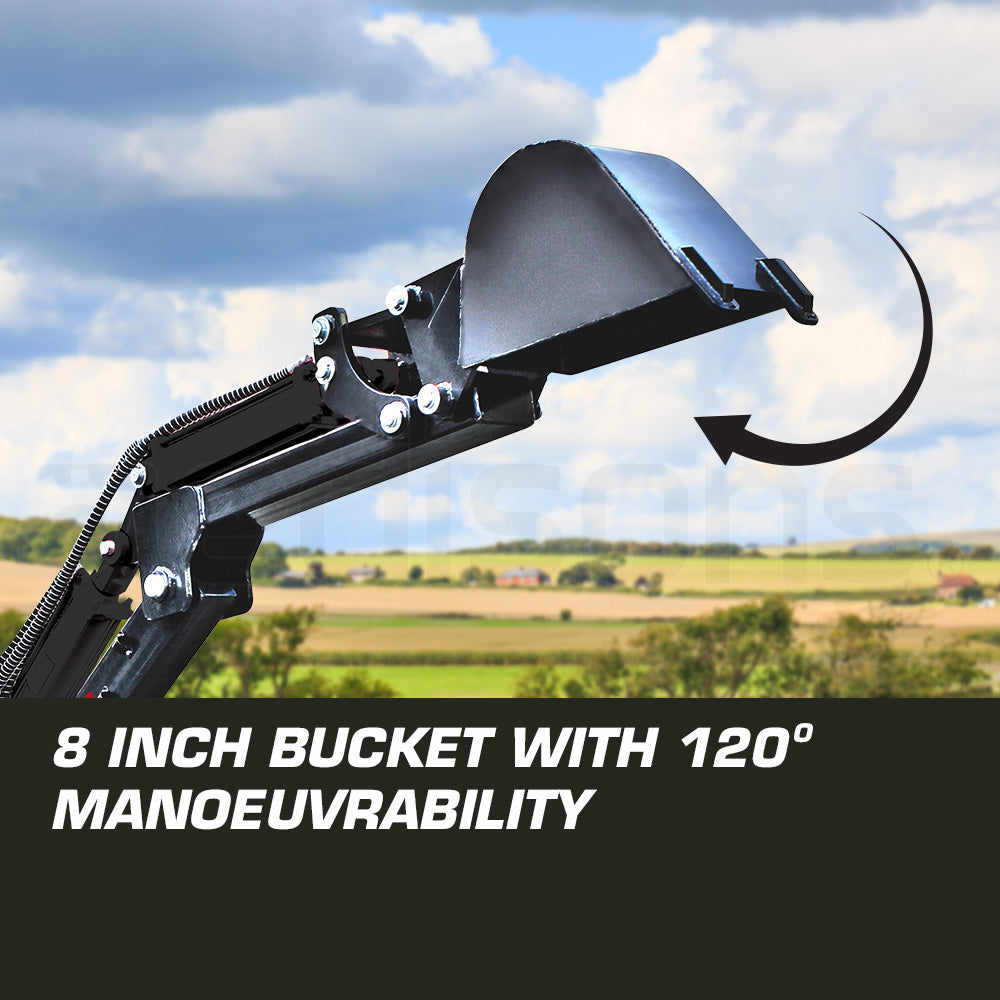

8” bucket
120° bucket swing
Easy to tow

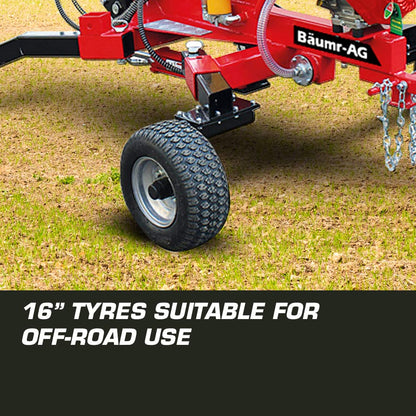

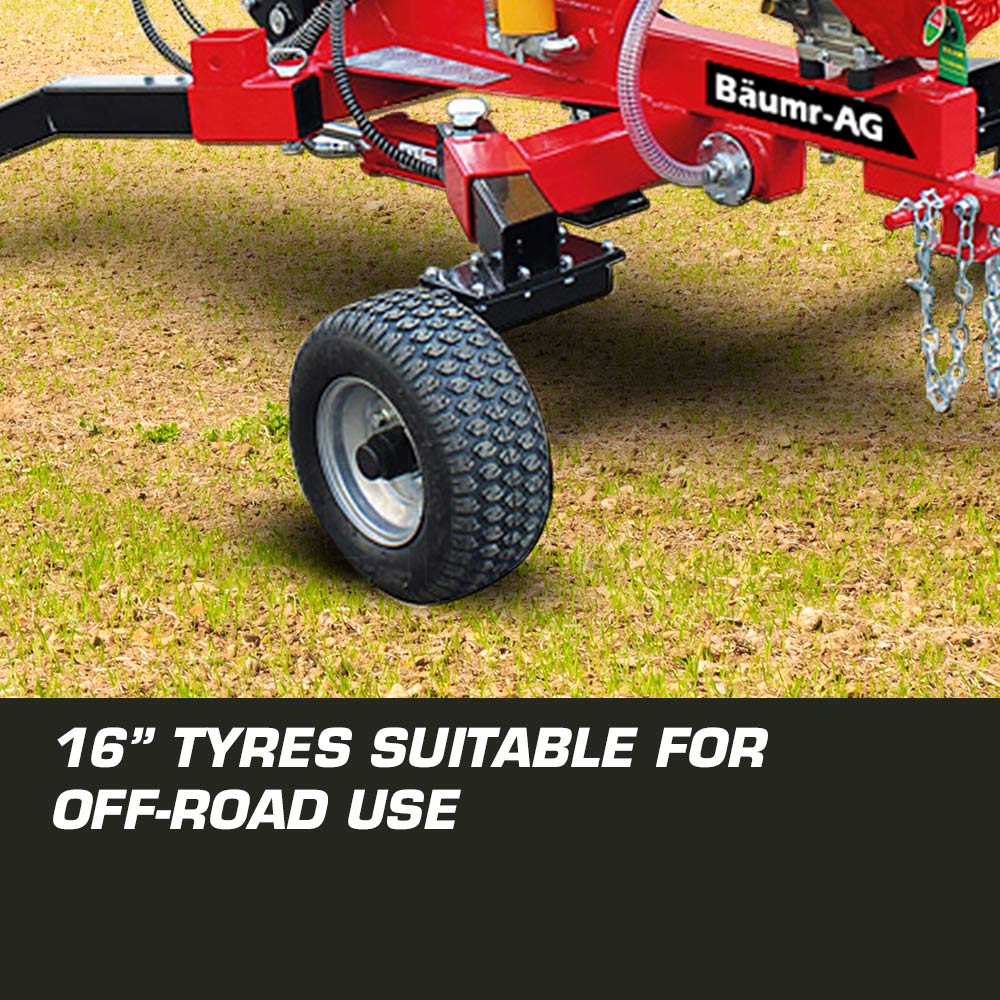

16” Pneumatic tyres
HoseGuard™ technology
Engine: 9HP
Engine Speed: 3600rpm
Starting System: Recoil
Fuel Type: Petrol
Engine Oil Capacity: 600-800mL
Hydraulic Oil Type (recommended): ISO46 / ISO68
Hydraulic Oil Capacity: 14.6L
Max Arm Length: 2752mm
Max Dig Depth: 7ft
Max Dig Reach: 8ft
Bucket Size: 8”
Bucket Swivel Degree: 120°
Towing Capacity: 1600kg (2” coupler)

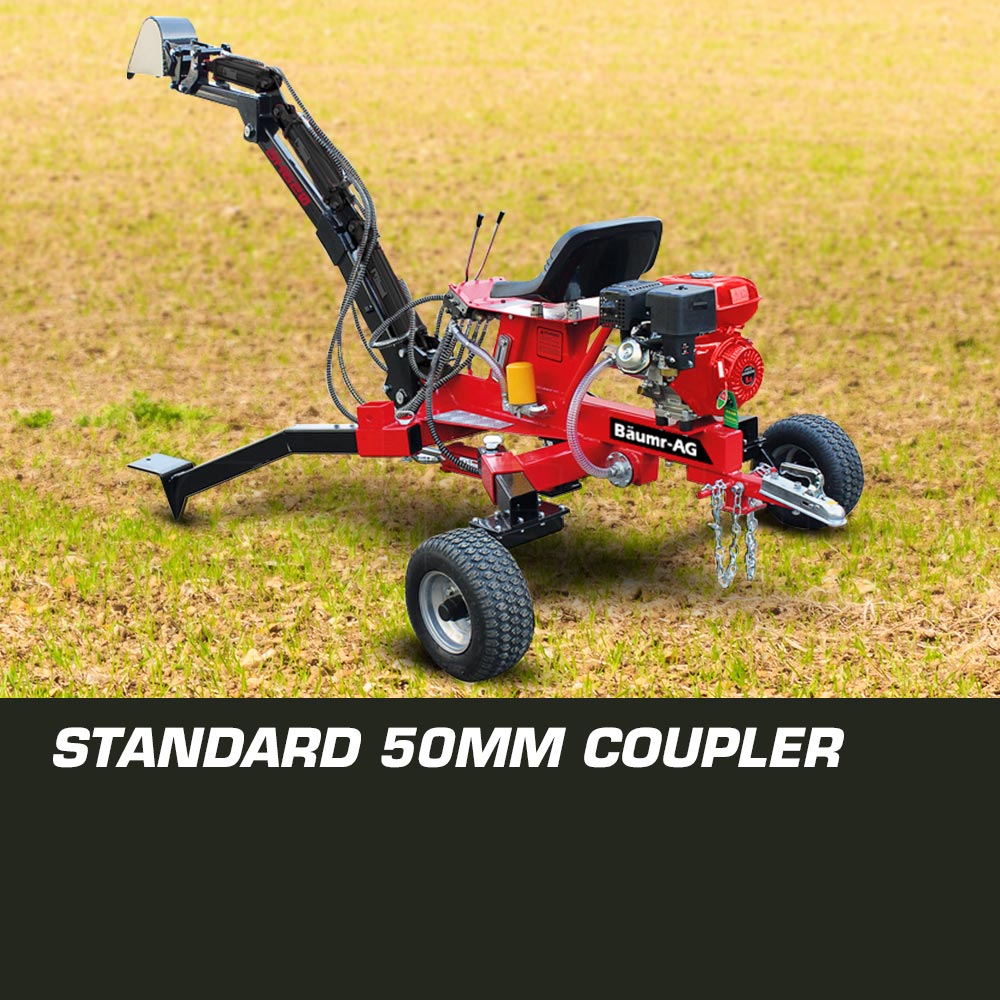

Coupler Size: 50mm
Engine Oil Type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil (not included with purchase)
Note:Requires Assembly
IN THE BOX
1 x 9HP Petrol Backhoe
SIZE & WEIGHT

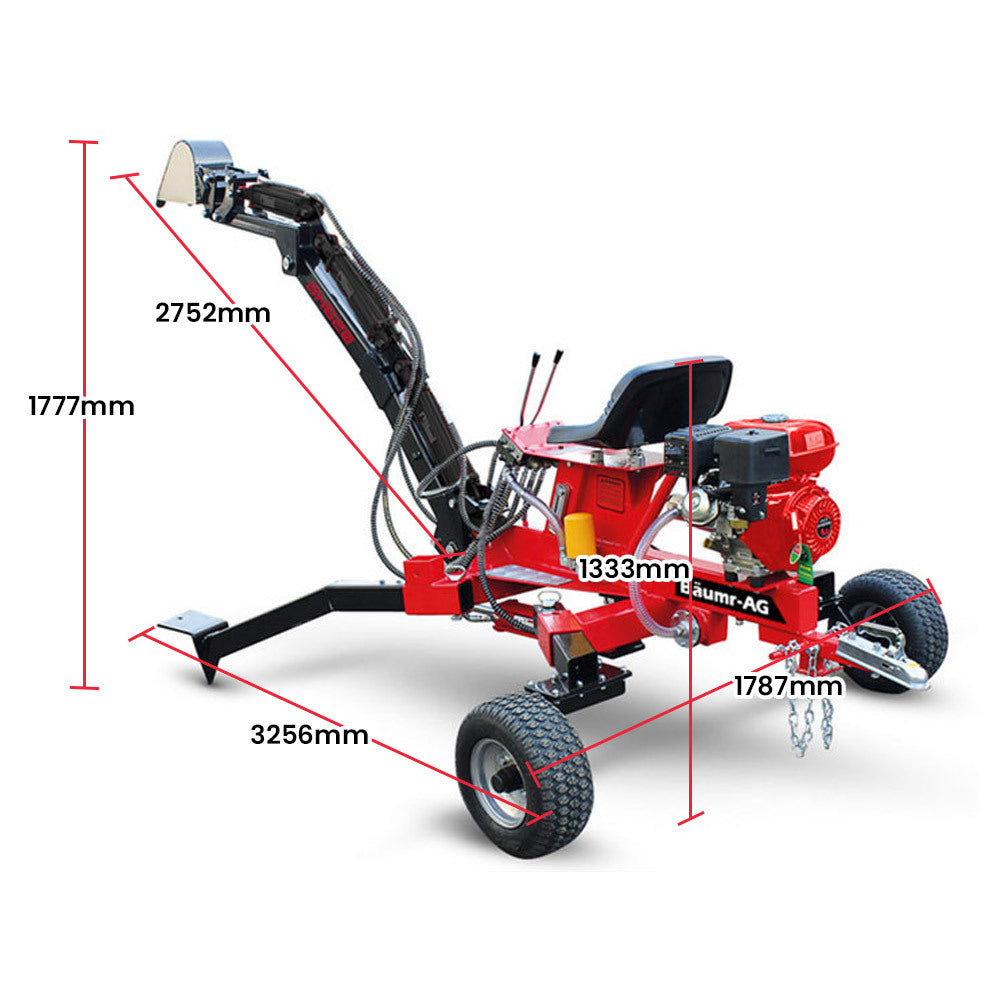

Product Dimensions (W x L x H): 1787 x 3256 x 1777mm
