Dividing Head Indexing Head Milling BS-0-4inch/100MM for Milling Grinding
About this item

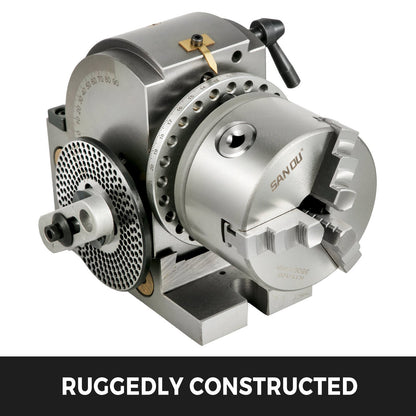

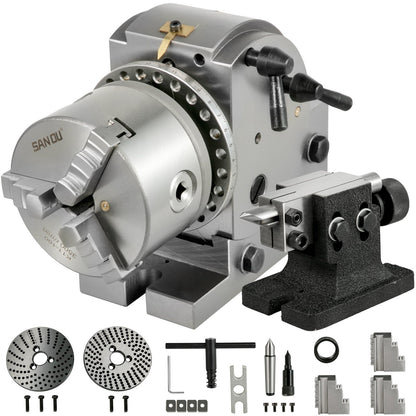

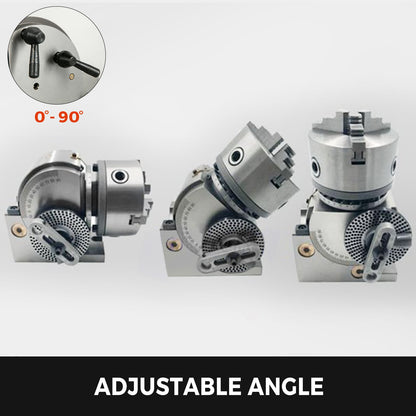

Adjustable Dividing Head: The semi-universal dividing head features 4" 3-jaw chuck, Spindle Hole Diameter: 18mm. The headstock is adjustable from the horizontal position to 90 degrees upward. Center Height: 4"/100mm. Free 3 more jaws for 4" chuck.
Solid Construction: Made from HT200 to be a long life. The rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40.

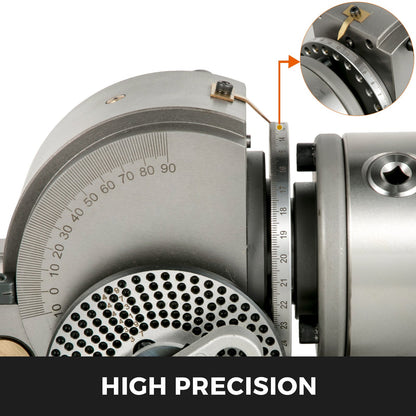

Clear & Accurate: Laser engraving scales. The quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.

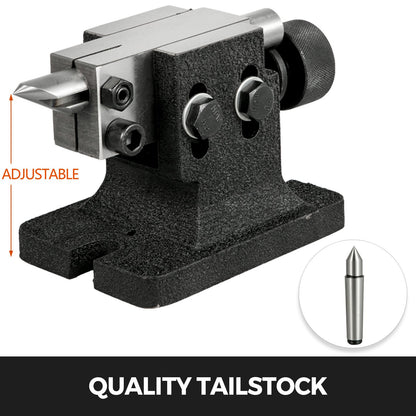

MT2 Tailstock Adjustable: Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. Tailstock: MT3. One free dead center.

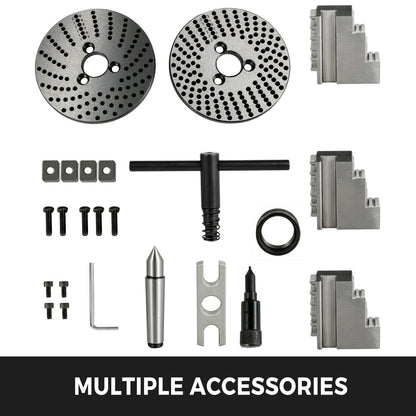

Rich Dividing Head Set: 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
