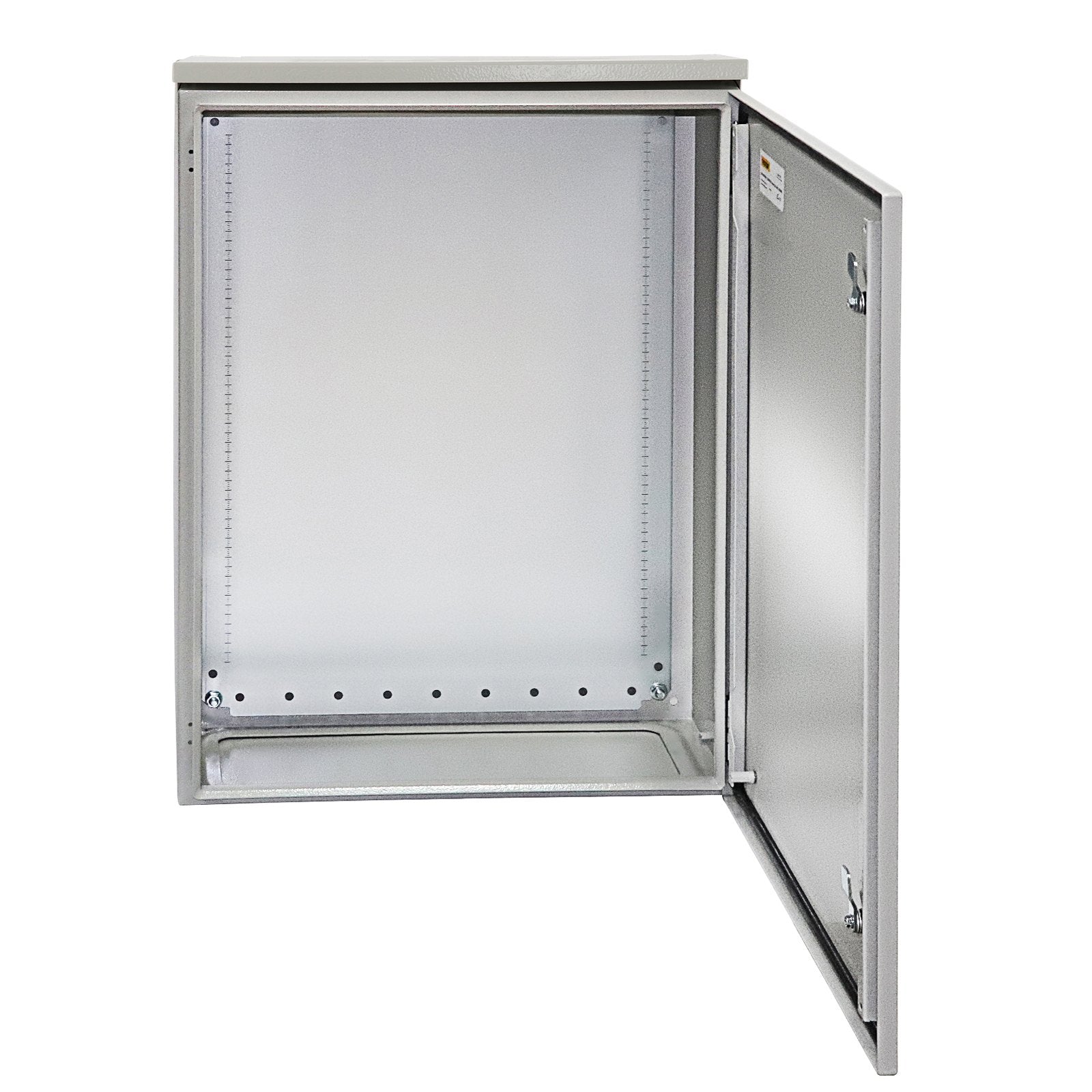

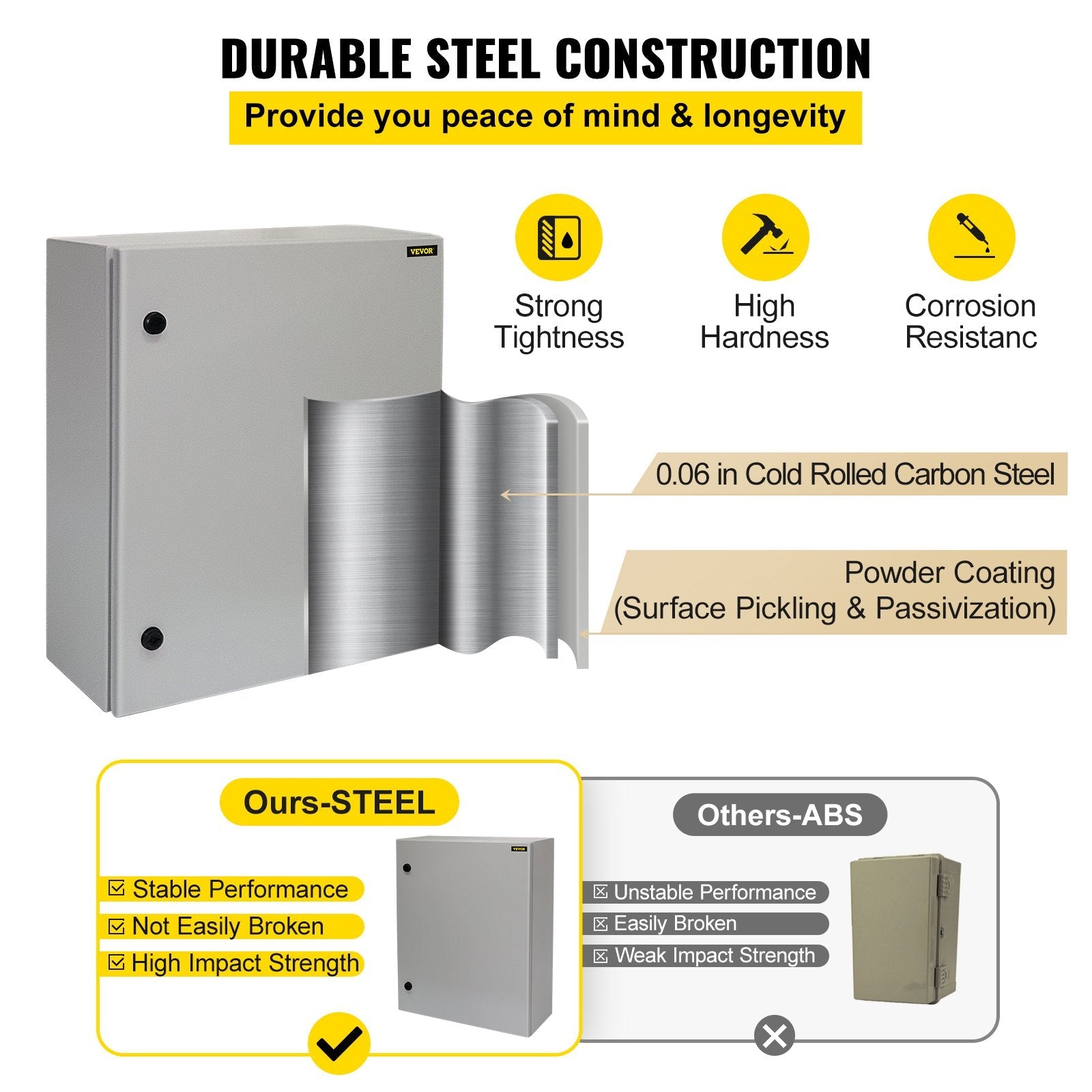

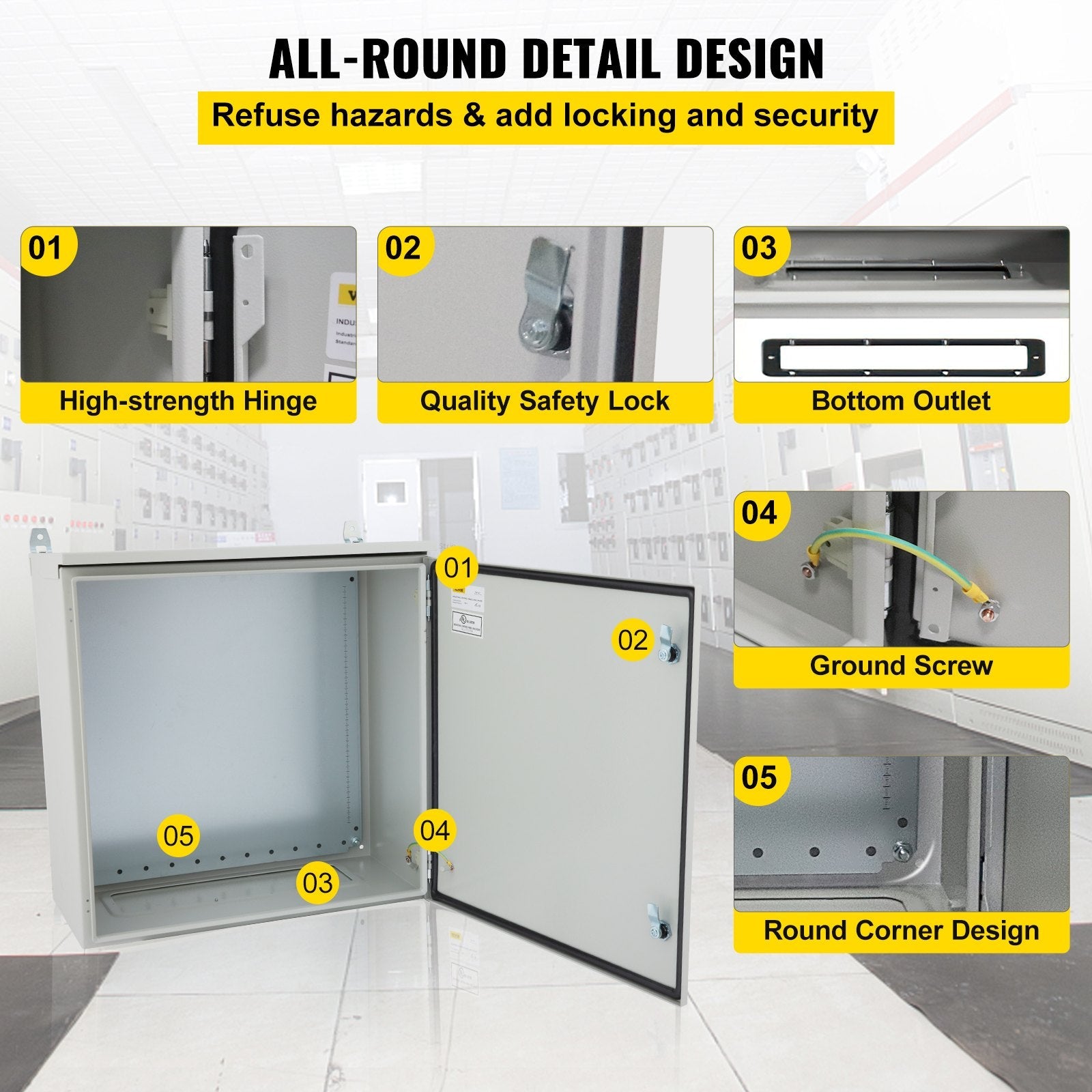

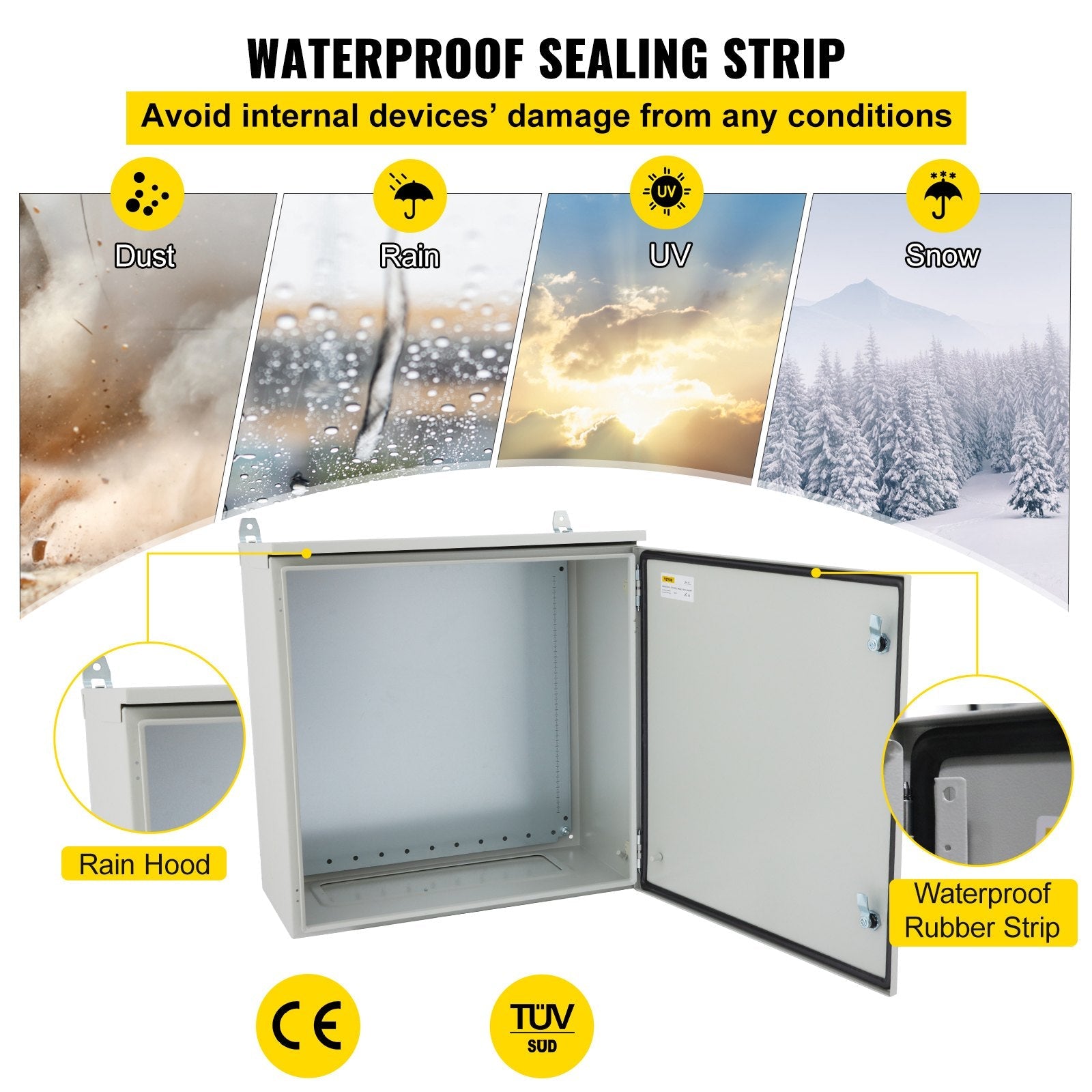

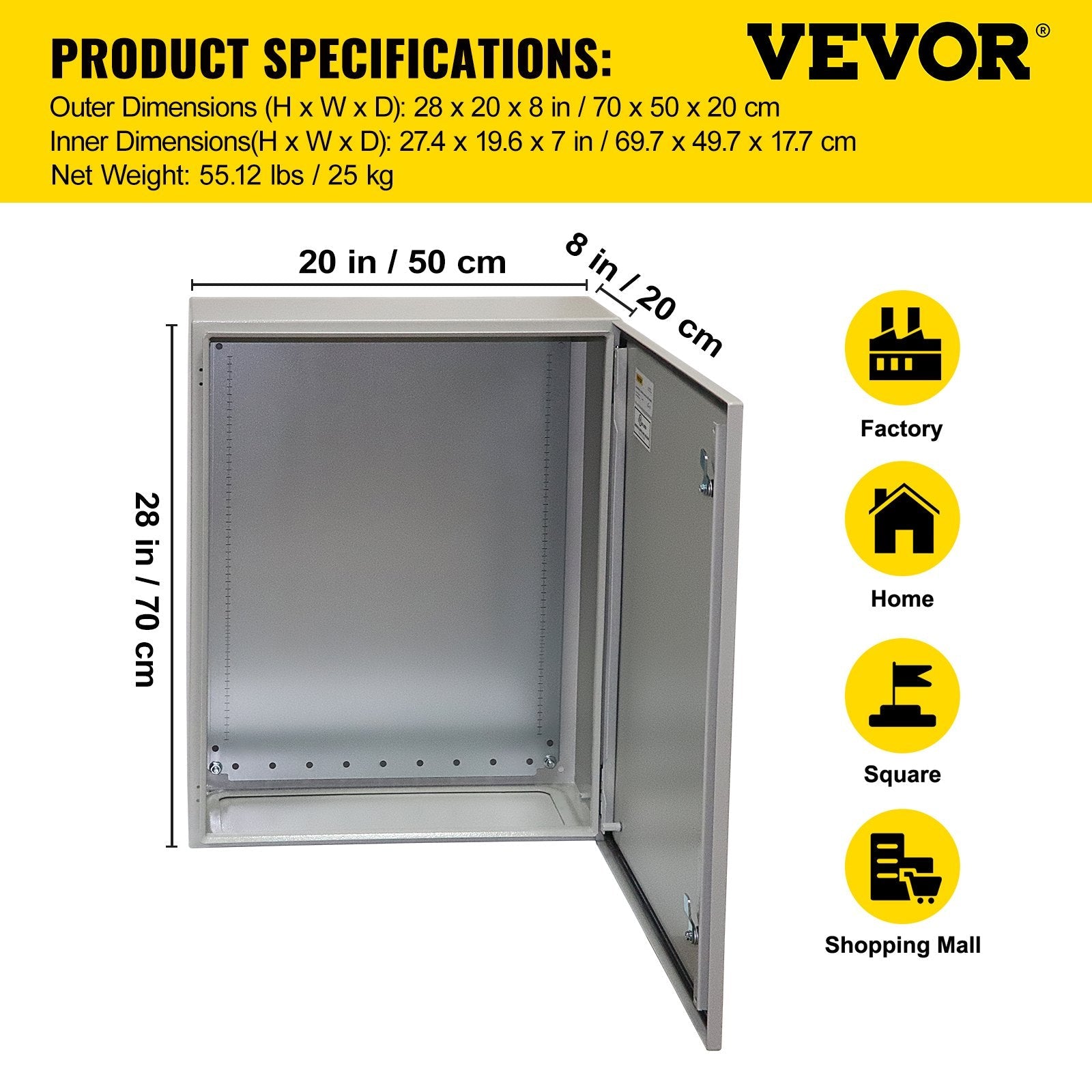

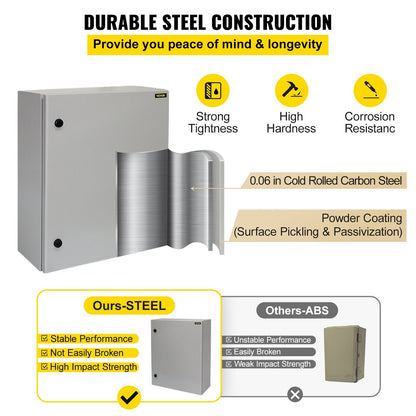

Electrical Steel Enclosure Box NEMA 4 Outdoor Enclosure 28 x 20 x 8'' UL Premium Steel Material IP65 Protection Level Hinge and Lock Security Effortless Installation Thoughtful Design Extensive Application Construction: Continuously Welded,Inner Dimensions(H x W x D): 27.4 x 19.6 x 7 in / 69.7 x 49.7 x 17.7 cm,Color: RAL 7035 (White Gray),Protection Grade: IP65, IK10,Certification: TUV, CE, UL 508A (CSA C22.2 No. 14-13.),Ambient Temperature: -40 to 122℉ / -40 to 55°C,Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm,Ratings: NEMA Type 4,Outer Dimensions(H x W x D): 28 x 20 x 8 in / 70 x 50 x 20 cm,Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel,Inner Plate: 0.06 in / 0.15 cm Galvanized Plate,Galvanized Backplate Dimensions(H x W): 26.2 x 18 in / 66.5 x 45 cm,Model: ST7520,Gasket Material: Seamless Foam/ Nylon(washer or plug),Finish: Powder Coating(Surface Pickling and Passivization),Net Weight: 55.12 lbs / 25 kg
